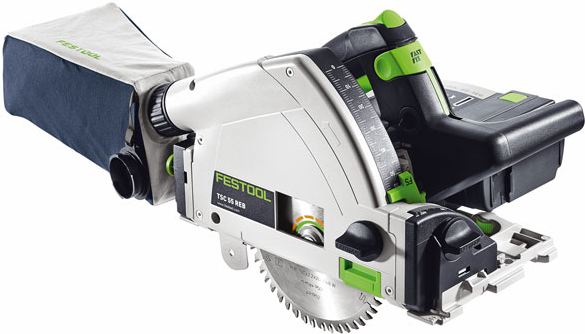

Description
Brushless EC-TEC motor combined with lithium-ion batteries for maximum cutting power
Flexible dual battery concept: can be operated with two 18-volt battery packs (36V) for maximum power or one 18-volt battery pack for low weight
High-speed EC-TEC motor for perfect cutting quality and rapid working progress

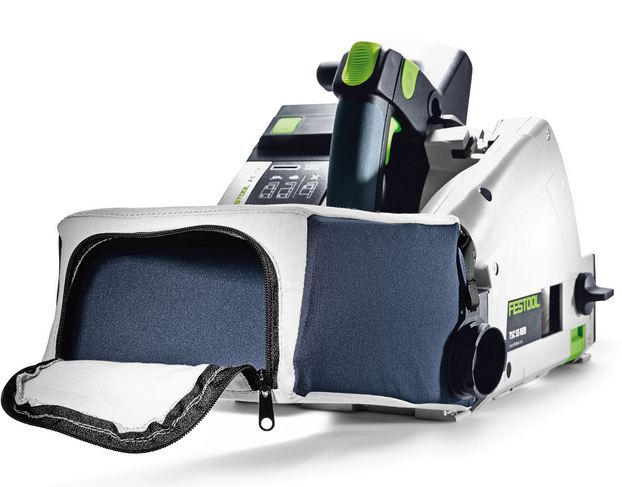

Chip collection bag for clean, healthy working
New FastFix generation for even quicker and easier saw blade changes and adaptation to the working material
Main Applications
Precise circular in materials up to 55 mm thick

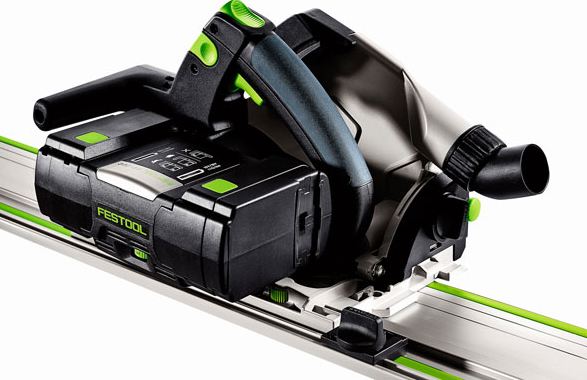

Cutting interior doors to length using guide rail and circular saw
Cutting recesses in doors and kitchen worktops
Manufacturing expansion joints in parquet flooring and false joints
Cutting chipboard to size
Technical Data
Battery voltage
18/36 V
Idle engine speed
2650-3800/5200 min¹
Saw blade diameter
160 mm
Angular range
-1-47 °
Cutting depth
0-55 mm
Cutting depth at 45 degrees
0-43 mm
Connection Ø d/e
27/36 mm
Li-Ion battery capacity
5,2 Ah
Weight 1x18V/2x18V
4,6/5,3 kg
